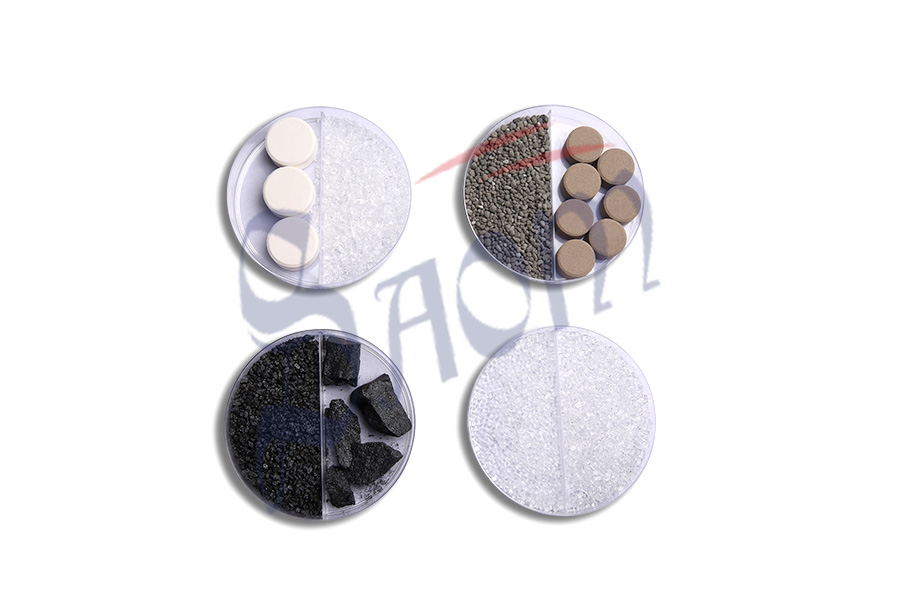

Evaporation Materials

Specification Code:001
Specification Description:1-6mm 4N

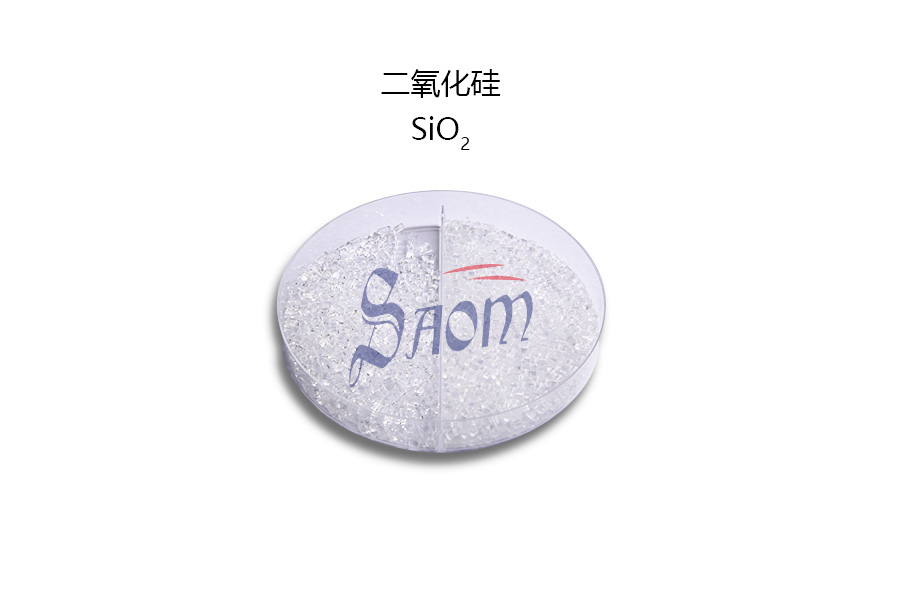

SiO2 Granules

SIO2

physical state:Transparent and odorless crystals
shape:Irregular particles
color:transparent
odour:No information available
Melting point:1610ºC
boiling point/ range:2230ºC
decomposition temperatureNo information available
ignition temperature:No information available
vapour pressure:No information available
solubility:Insoluble in water and acid, soluble in hydrofluoric acid
relative density:2.2
partition coefficient:No information available
oxidising properties:No information available
other properties:No information available
The main purpose:Silicon dioxide is an important raw material for manufacturing glass, quartz glass, water glass, optical fibers, electronic industry components, optical instruments, handicrafts, and refractory materials. It is also an important material for scientific research.

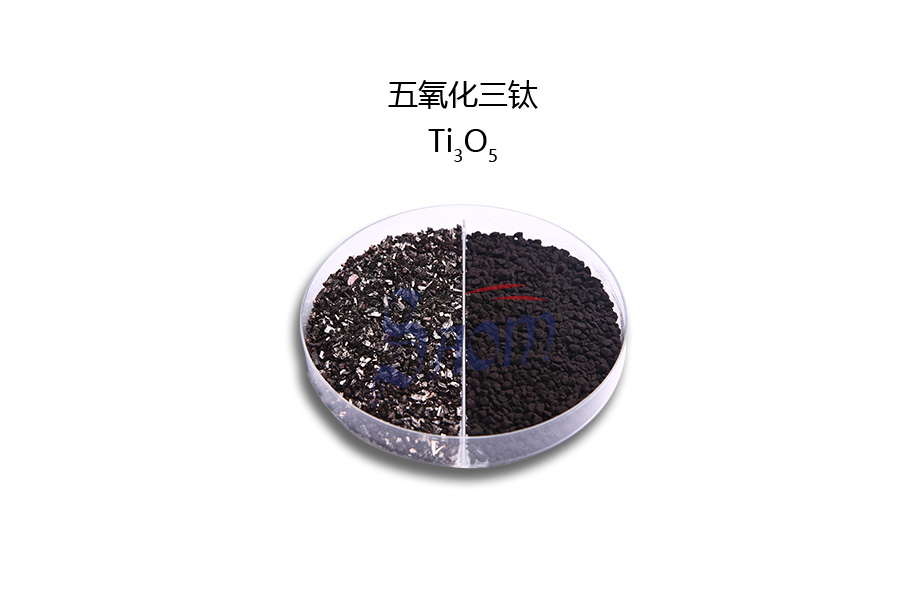

Ti3O5

physical state: Brown crystal particles, sintered particles
shape: Irregular particles or powders
color: Brown, black
Melting point: 1800℃ boiling point/ range: 5400℃
solubility: Insoluble in water, insoluble in dilute alkali and acid, soluble in hot concentrated sulfuric acid, hydrochloric acid and nitric acid
relative density:4.2
The main purpose: Titanium pentoxide (TiO₂) is a white pigment with a high refractive index (n=2.4), ideal for reflective coatings and as an opacifier. Its UV stability and opacity make it a key ingredient in sunscreens and cosmetics, serving as a pigment, thickener, and physical UV blocker.

Xenon Lamp

Character of product quality：

• Flash stability
• High cycle life
• Good Uniformity of Properties
• Quality raw materials and strict quality control
• Optimization of cathode technology
• Provides a variety of connection methods

Double Pendulum Polishing Machine(DPPM)

Projection：Parameters
Component material：SComponent material
Components size：20-600mm
Component thickness：0.1-10mm
Spindle speed：0-20rpm（Servo speed regulation）
Spindle radial runout：≤ 0.015mm
Spindle end beating：≤ 0.015mm
Spindle motor power：≥ 2.2KW（brand servo）
Air pressure：pressure ≥ 20KG
Pendulum swing frequency：0-20rpm
Wobble motor power：≥ 1.3KW（brand servo）
Operation interface：PLC+Touch screen
Slurry supply：Automatic slurry supply
Temperature demand：22℃ ±0.5℃
Humidity demand：40%-80% RH

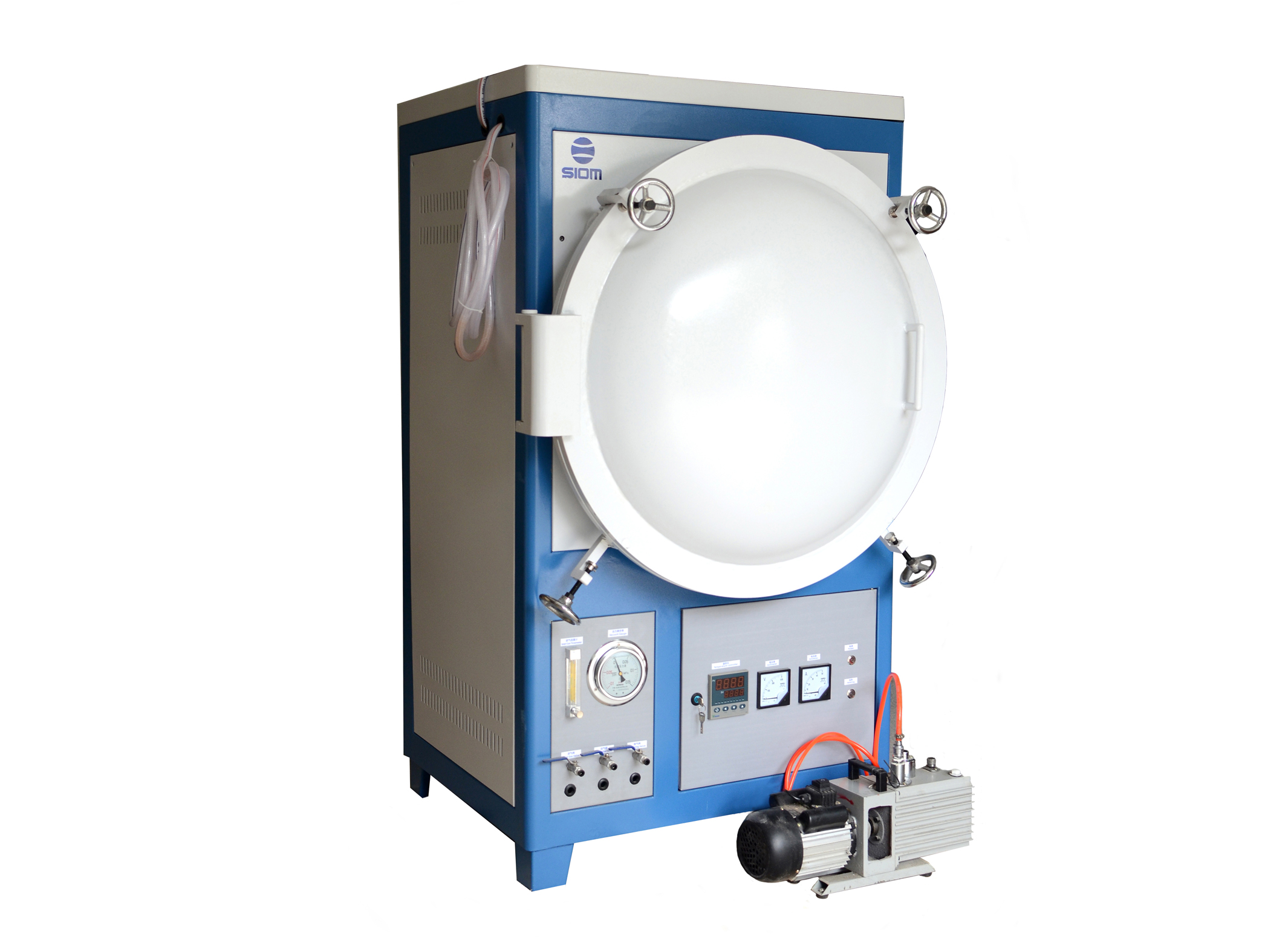

Ventilated Protected Sintering Furnace

The atmosphere furnace of ventilated sintering furnace uses silicon carbon rod as heating element, adopts double shell structure and intelligent temperature control system, and is triggered by phase shift and controlled by silicon control. The inner liner is made of temperature-resistant and pressure-resistant alloy material; The furnace door is equipped with circulating water cooling to ensure the reliable sealing of the furnace door and furnace gall.

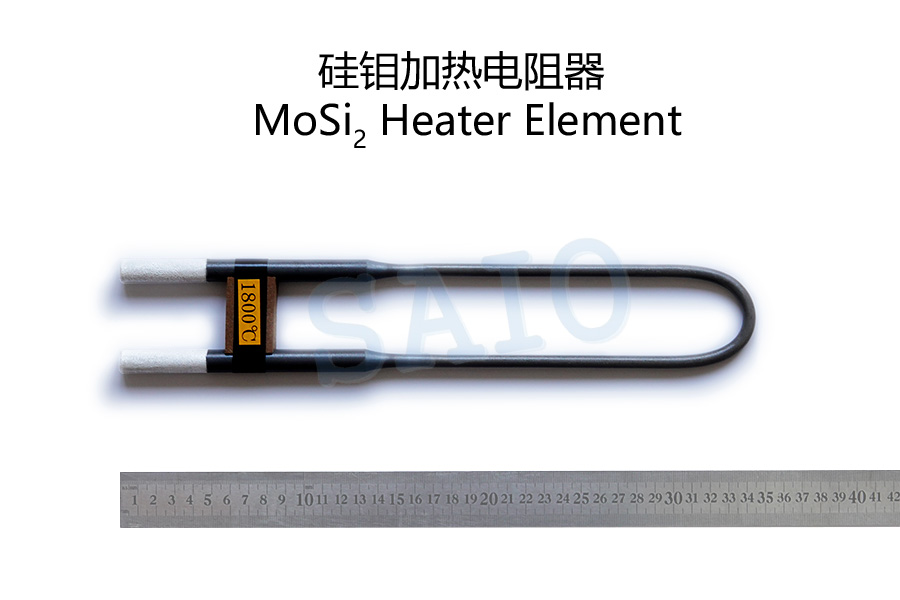

MoSi2 Heater Element

Type  Size Type
80-140 80*140*9*5*38mm
90-80 90*80*6*3*20mm
120-90 120*90*6*3*25mm
125-100 125*100*6*3*25mm
150-150 150*150*6*3*25mm
150-190 150*190*6*3*25mm
180-150 180*150*6*3*25mm
180-250 180*250*9*4*25mm
200-120 200*120*6*3*25mm
200-150 200*150*6*3*25mm
200-180 200*180*6*3*25mm
200-200 200*200*6*3*25mm
250-280 250*280*6*50mm
250-315 250*315*6*3*25mm
280-150L-4.5 280*150*9*4.5*25mm
280-200L-4.5 280*200*9*4.5*25mm
300-300 300*300*9*4*25mm
300-500 315*500*4.5*50mm

Silicon Monoxide(SiO)

physical state: Brown or black chunks or powder
shape: Irregular particles
color: Brown or black
odour: No information available
Melting point(℃)： 1870 °C
boiling point/ range: 1880°C
decomposition temperature:No information available
ignition temperature: No information available
vapour pressure: No information available
solubility: Insoluble in water, soluble in a mixture of dilute hydrofluoric acid and nitric acid
relative density: 2.13 g/mL at 25 °C(lit.)
partition coefficient: No information available
oxidising properties: No information available
other properties: No information available
