Xi’an SNP Precision Optics Co. Ltd.

出展のみどころ

Our company was founded in January 2017, with an investment of 10 million yuan, and our company is a production enterprise that establish the laser gyro precision optical components processing. The annual production capacity for gyro optical components from 800 sets has already gradually increased to 4,000 sets per year, the production process increased from the optical processing at the beginning to optical parts chemical cleaning, mirror coating process. The investment capital from the initial 10 million to the cumulative investment of about 90 million, and our production capacity value has already from 30 million yuan gradually increased to 150 million.

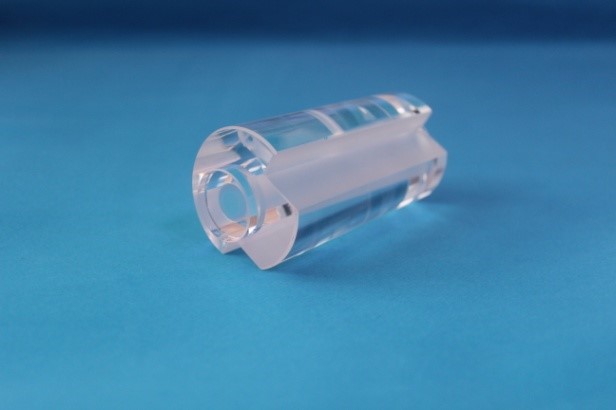

High precision optical reference cavity/high performance optical frequency oscillation source

Size:cubic cavity, cylindrical cavity, cut mouth cavity, conical cavity etc
Material:fused silica, ULE, single silicon
Surface roughness:0.1nm Fineness:300000-500000 Surface accuracy:＜λ/10 Coupling effiency:≥50%

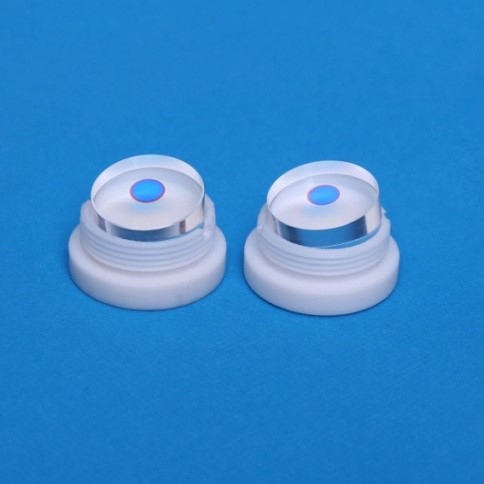

High precision optical reference cavity component

Size:D12.7*6.35,D25*6.35,D20*6.35 etc
Material：fused silica, ULE, single silicon
Reflectivity：≥99.999%
Curvature;R500-R2000

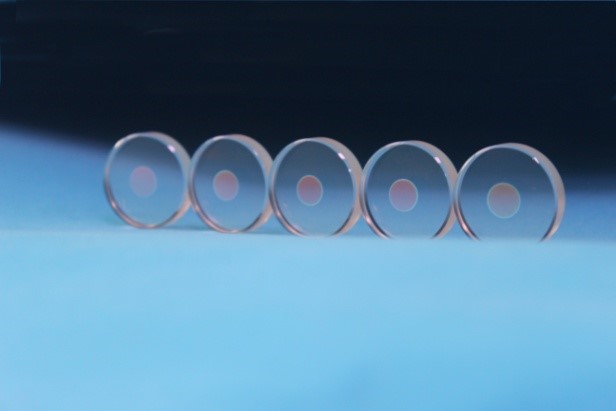

Super high reflectivity & super low loss mirror

Material:fused silica, ULE, zerodur, k9 and pther infrared material
Size:D12.7*6.35,D25*6.35,D20*6.35
Reflectivity：≥99.999% Absorption+scattering loss:≤5ppm

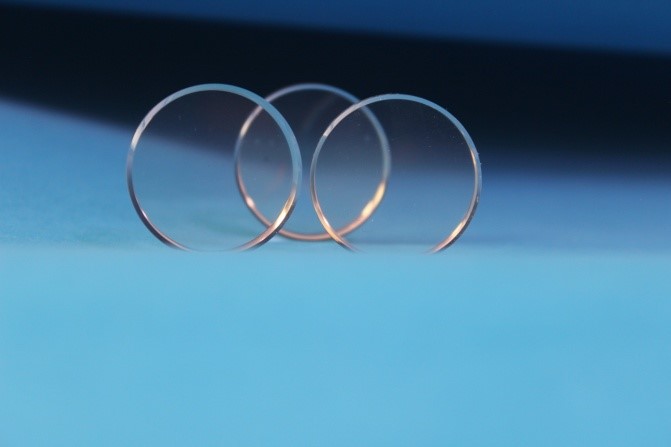

Super smooth substrate

Size：D25×6.35、 D12.7×6.35 Size
Material: JGS1、7980 OF,zerodur
Roughness: 1 angstrom
Surface quality:10-5

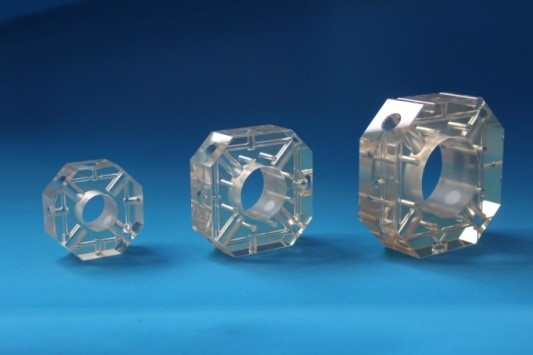

Laser Gyro component

Hole coplanar degree :0.01-0.015 ; Angle tolerance between holes:30'' ; Coaxiality of the diaphragm:0.01; Defect degree:10-20; Surface accuracy :λ/10; Angle accuracy:±3
