Fully automated Tester for ultrawide angle and telephone camera

RFT, camera comprehensive tester, can test wide-angle and telephoto cameras. By integrating the rotatable electric collimator and the camera alignment system, the automatic shooting, image acquisition and image quality analysis of the camera are realized. Temperature drift test can be realized with additional incubator.

Geometric Calibration System

Geometric Calibration System is specially used for internal reference calibration of wide-angle and short-focus camera. The machine integrates flat light source, transmissive chart and high-precision six-axis platform, and supports pinhole, fisheye, and MEI models. Depending on camera FOV, up to 4 can be calibrated simultaneously.

Active alignment machine

AA machine, specially designed for vehicle camera module, integrates five collimators, image grabber and the latest ISO12233 algorithm, which not only ensures the accuracy of AA data, but also is well compatible with production needs of ultra wide-angle and telephoto cameras. At the same time, the machine adopts the form of European roulette, which greatly improves the UPH.

MIG-S2 Frame Grabber

"1.Supports MIPI, Maxim/TI serializer modules, with a maximum MIPI speed of 2.5Gbps/LANE
2. Supports USB3.0 high-speed transmission, with a speed of 5Gbps.
3. The upper computer supports Windows&Linux; operating systems.
4. Supports module open/short test."

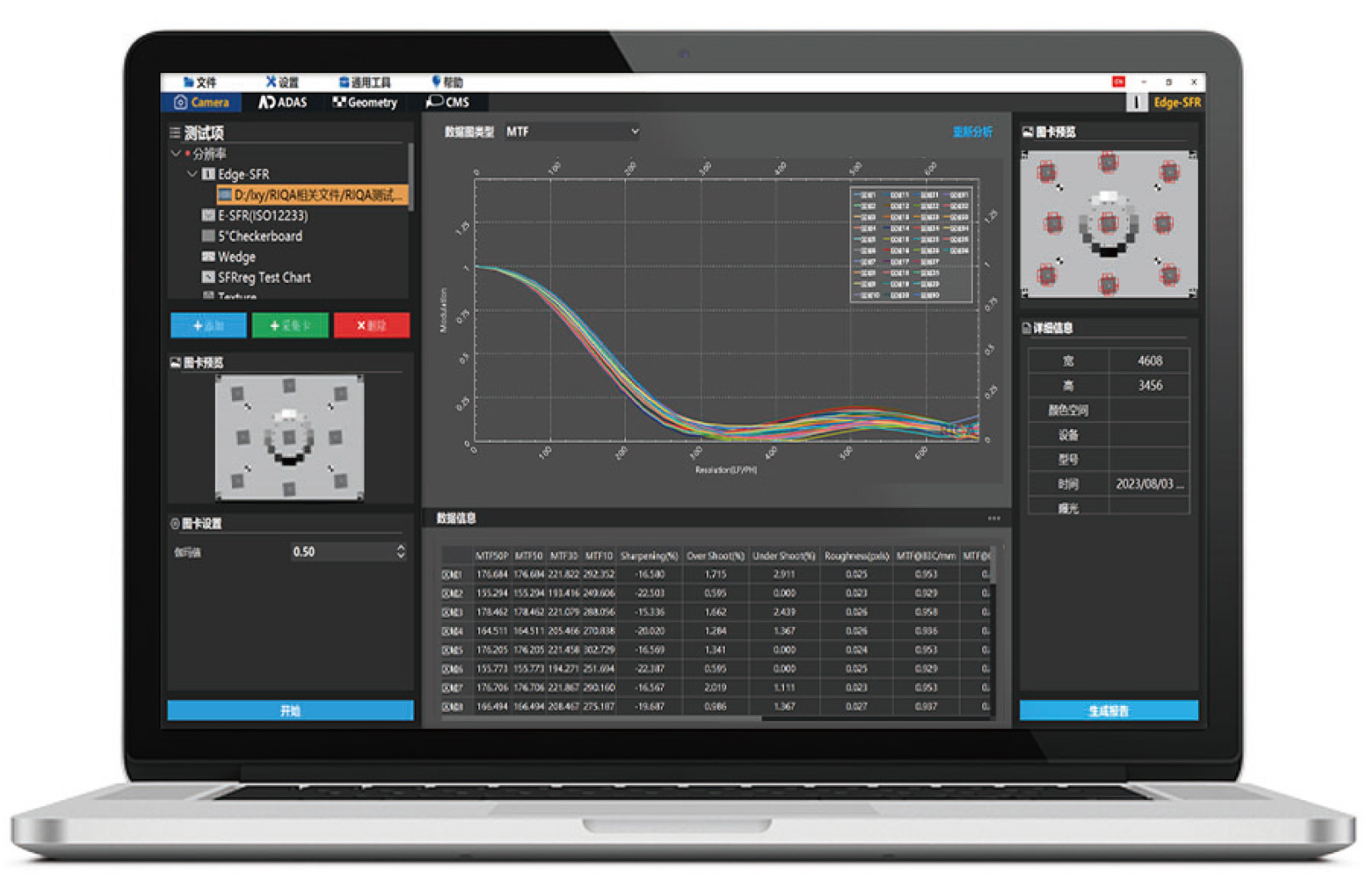

Randn Image Quality Analyzer

"1. Database approach
2. Automatic chart detection
3. Analyze individual reference data
4. Customizable test setup and result output
5. Provide API to customers"
